Product Description

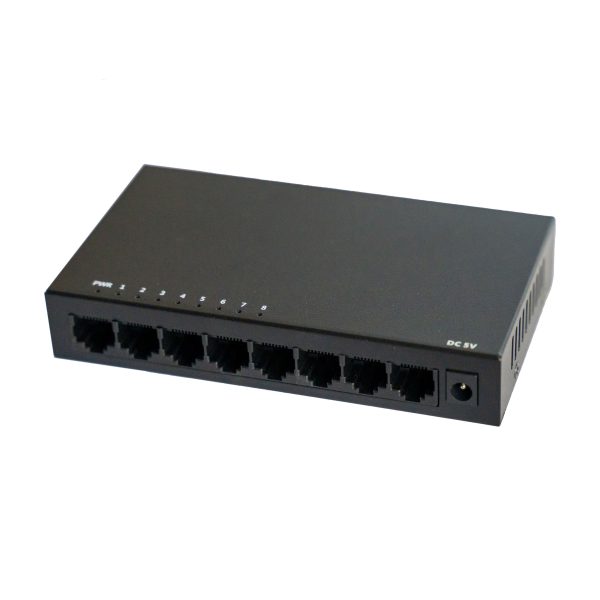

The 8-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 8 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Main Features
- 8x Gigabit RJ45 Ports
- Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
- Ethernet ports support 10/100/1000M adaptive
- Support Auto MDI/MDIX
- Panel indicators to monitor working status and help fault analysis
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
Application Environment
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Specifications
| I/O Interface | |
| Power | DC 5V |
| Ethernet | 8*Gigabit RJ45 Ports |
| Chip Solution | |
| Main Chip | EN8850DHE |
| Performance | |
| Switching Capacity | 16Gbps |
| Throughput | 11.90Mpps |
| Package cache | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 15Kbytes |
| Transfer Mode | Store and forward |
| Network Parameters | |
| Network Protocol | IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP (≤100m)
100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m) |
| Certification | |
| Safety certificate | CE, FCC, RoHS |
| Environmental Standards | |
| Working Environment | Working Temperature：-10~50°C
Storage Temperature：-20~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing |
| Indication | |
| LED Indicators | PWR（Power indicator）、Link（Network Link） |
| PWR | On: power on
Off: no power |
| Link | On: 10/100/1000M link connection is normal
Blinking: Data transmission is normal Off: link failure |
| Mechanical | |
| Structure Size | Product Size：138x78x25 mm
Packing Size：175x120x63 mm Product Weight：0.24Kg Packing Weight：0.37Kg |
| Packing Info | Outer box size: 520x335x380 mm
Packing quantity: 40 PCS Packing weight: 15.8KG |
| Operating Voltage | Power interface: DC5.5×2.1 mm
Switch input voltage: DC 5V-1A |
| Total power | Maximum 5W |
| Packing list | 1. Switch：1 PCS
2. User manual ：1PCS 3. Warranty ：1 PCS 4. Power Adapter：1 PCS |
